Name: Komatsu D39PX-24 Dozer
Brand: Komatsu
SKU: D39PX-24

Komatsu

D39PX-24

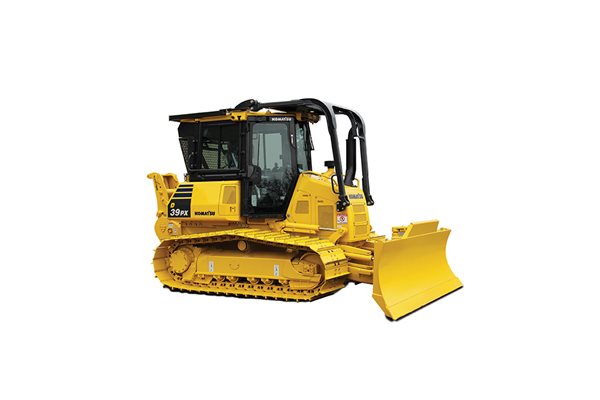

Equipped with an EPA Tier 4 Final certified engine, the Komatsu D39PX-24 crawler dozer has the cab forward design improved blade response, faster work equipment speed, and an additional “fast-blade mode” that improves blade speed for high-speed grading. The D39PX-24 dozer is extremely maneuverable by providing full power to both tracks during turns or counter rotation steering. It is an ideal choice for any grading or earth moving applications.

Emission Rating

Tier 4 Final

Net Horsepower

105 HP @2,200 rpm (78 kW @2,200 rpm)

Max Operating Weight

22817 lb (10350 kg)

Blade Capacity

3.14 yd³ (2.4 m³)

Download D39PX-24 Brochure

Features

Rear view monitor system

On the large LCD color monitor, the operator can view, through one camera, areas directly behind the machine. This camera can be synchronized with reverse operation.

Secondary engine shutdown switch

A new secondary switch has been added at the side of the front console to shut down the engine.

Planned maintenance and daily checks are the only way to ensure long service life from equipment. That’s why Komatsu designed the D39PX-24 with conveniently located maintenance points to make necessary inspections and maintenance quick and easy.

Ecology guidance

In order to support efficient operation, the following four messages are displayed for fuel saving operation. These can be displayed by the operator, if desired.

1. Avoid Excessive Engine Idling
2. Use Economy Mode to Save Fuel
3. Avoid Hydraulic Relief Pressure
4. Avoid Over Load

Ecology gauge

To help the operator to perform in an environmentally friendly way and minimize energy consumption, an easy-to-read “Ecology gauge” is displayed on the left of the multi-monitor screen.

Fuel consumption display

Average fuel consumption during the day is displayed and updated every 10 seconds.

The D39PX-24 is equipped with Komatsu-designed HST that allows for Quick-Shift or variable speed selection. The HST consists of dual-path closed-circuits, with two variable displacement piston pumps and two variable displacement travel motors. Hydrostatic steering eliminates steering clutches and brakes, providing smooth, powerful turns. Fully electronic control provides complete automatic shifting and enables smooth control. Engine speed is controlled using an electronic fuel control dial.

New regulations effective in 2014 require the reduction of NOx emissions. In addition to refining the U.S. EPA Tier 4 Interim technologies, Komatsu developed a new Selective Catalytic Reduction (SCR) device in-house.

1. Komatsu Diesel Oxidation Catalyst (KDOC)
2. Variable flow turbocharger
3. Komastu Closed Crankcase Ventilation (KCCV)
4. SCR with Diesel Exhaust Fluid (DEF)

A large, user-friendly color monitor provides easy-tounderstand information for the operator. Excellent screen visibility is achieved with a high resolution LCD monitor that is easy to read at various angles and lighting conditions. Simple and easy-to-operate switches and function keys facilitate multi-function operations. The monitor displays data in 26 languages.

One of the design goals behind the creation of the D39PX-24 was to manufacture a more durable machine. This was achieved by reducing component complexity and using a strong modular design for increased serviceability and durability. Steel castings reduce the number of welds, improving rigidity and strength.

Machine operation is simple because brake function has been integrated into the decelerator pedal. Machine travel speed can be controlled using one pedal. The pedal function can be changed by a mode selector switch.

Decelerator mode

The pedal modulates engine rpms and vehicle travel speed. It can be used for all applications.

Brake mode

The pedal modulates vehicle travel speed while maintaining high-engine speed. This mode can be helpful to maintain work-equipment speed, while using the brake function.

Komatsu’s ergonomically designed PCCS handles create an operating environment with complete operator control.

PCCS

The low-effort PCCS joystick controls all directional movements, including machine travel speed as well as counter-rotation.

Electronic controlled hydraulic system

Electronic controlled palm commanded joystick provides precise blade control. New blade angling switch operation provides easier and predictable blade control.

Komatsu's PLUS rotating bush design provides less downtime, longer wear, and with up to 40% lower undercarriage maintenance costs. Rotating bushings eliminate the cost and downtime for bushing turns, and strengthened rollers and links increase wear life up to two times. With PLUS, individual links can be replaced with common track tools.

A power angle power tilt dozer blade with adjustable blade pitch system is available on the D39PX-24. The hydraulic blade tilt and angling function expands versatility and productivity in a variety of applications and manually adjustable blade pitch.

The D39PX-24 utilizes a swing-up fan with a gas strut-assisted lift system to provide easy access to the (side-by-side) radiator, oil cooler and charge air cooler. The hydraulic fan has a cleaning mode which enables the fan to rotate in the reverse direction to help clear off objects that are restricting air flow.

P mode is the mode designed for powerful operation and maximum production. E mode is designed for general dozing applications, providing adequate speed and power, while saving energy. For fuel reduction and energy savings, the monitor panel allows the operator to easily switch between working modes, depending on working conditions.

P mode (Power mode)

With P mode, the engine outputs its full power, allowing the machine to perform work requiring large production, heavy-load, and uphill work.

E mode (Economy mode)

With E mode, the engine outputs enough power for the work without delivering unnecessary power. This mode enables energy saving operation and is ideal on hard or rough surfaces that often cause shoe slip and work not requiring as much power, such as downhill dozing, leveling and light-load work.

The D39PX-24 incorporates Komatsu's super-slant nose design. Komatsu's innovative design provides excellent blade visibility for improved machine control and increased efficiency and productivity.

Komatsu auto idle shutdown automatically shuts the engine down after idling for a set period of time to reduce unnecessary fuel consumption and exhaust emissions. The amount of time before the engine is shutdown can be easily programmed from 5 to 60 minutes.

Specs & Compare

Printer Friendly Version

Select up to 4 models to compare specifications

Features

ADDITIONAL OPERATOR CONVENIENCE EQUIPMENT

EASY MAINTENANCE

ENERGY SAVING OPERATION

HST WITH ELECTRONIC CONTROL

KOMATSU’S NEW EMISSION REGULATIONS-COMPLIANT ENGINE

LARGE MULTI-LINGUAL HIGH RESOLUTION LCD MONITOR

MODULAR DESIGN

SINGLE PEDAL (DECELERATOR/BRAKE PEDAL) TO BE OPERATED FOR SPEED CONTROL, DURING OPERATION

PALM COMMAND CONTROL SYSTEM (PCCS) LEVERS

PARALLEL LINK UNDERCARRIAGE SYSTEM (PLUS)

PAT DOZER WITH ADJUSTABLE PITCH

REAR, HYDRAULICALLY-DRIVEN, SWING-UP FAN

SELECTABLE WORKING MODE

UNRIVALED BLADE VISIBILITY

AUTO IDLE SHUTDOWN FUNCTION
