Name: Komatsu PC78US-11 Excavator
Brand: Komatsu
SKU: PC78US-11

Komatsu

PC78US-11

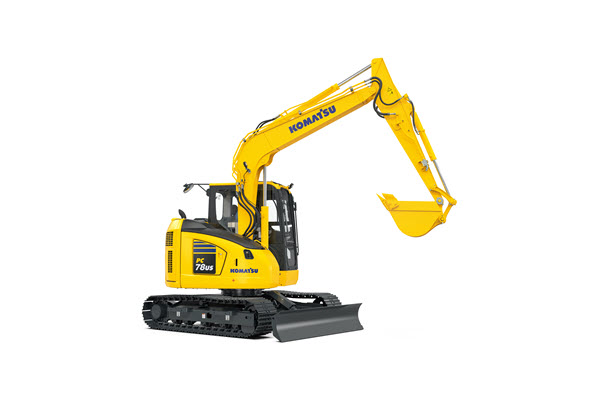

Designed to excel in underground utility and general construction urban environments, this new Komatsu short-tail swing excavator is at home in confined spaces. Extremely transportable, it delivers high attachment flow with in-cab programmable flow rates for a wide range of attachments. The PC78US-11 uses up to 13% less fuel than the prior model.

Emission Rating

Tier 4 Final

Net Horsepower

68 HP @1,850 rpm (51 kW @1,850 rpm)

Max Operating Weight

18188 lb (8250 kg)

Max Bucket Capacity

0.26 yd³ (0.2 m³)

Max Digging Depth

15′3″ (4660 mm)

Download PC78US-11 Brochure

Features

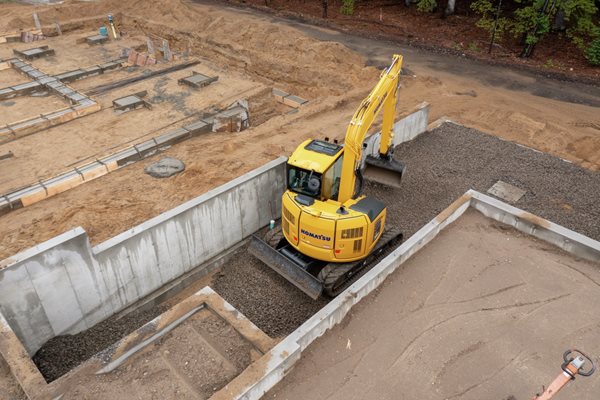

For working in tight areas, a compact short tail swing offers maneuverability in more confined areas than a conventional excavator, such as in a single lane of traffic. The conventional boom design has a greater raising angle to reduce the front bucket swing radius.

Faster boom up/swing speed, combined with responsive quick arm speed, makes excavating and leveling work easier and more efficient over previous models. Six working modes let you tailor the machine to the tasks required, whether it be for performance or fuel savings.

The new high-efficiency power package and viscous fan clutch work together to lower overall fuel consumption up to 13%*. A smart, simplified catalytic system removes soot without a diesel particulate filter, meaning lower cost of ownership and less maintenance. * over previous model

Operators work comfortably in a quiet, climate-controlled cab featuring air suspension seat, Bluetooth radio, and high-resolution monitor with rearview camera. LED lights provide excellent vision at night. Sliding cab door makes entry and exit easier in confined spaces.

Periodic maintenance is more accessible and efficient with large service access doors and grouped service points with ground-level access.

Standard high flow auxiliary hydraulics with proportional joysticks allows you incredible job versatility while providing precise attachment control. Standard grading blade with new moldboard profile improves backfilling and light grading efficiency over previous models.

Specs & Compare

Printer Friendly Version

Select up to 4 models to compare specifications

Features

COMPACT DESIGN

FAST CYCLES AND CUSTOM MODES

FUEL EFFICIENT, LOW-COST POWER

MAXIMUM OPERATOR COMFORT

QUICK AND EASY MAINTENANCE

VERSATILITY AND EFFICIENCY COME STANDARD
