Name: Komatsu WA475-11 Wheel Loader
Brand: Komatsu
SKU: WA475-11

Whether you're digging foundations or building communities, our reliable equipment delivers precision for construction work. Select from top brands like Komatsu, BOMAG, and Takeuchi, plus custom attachments to ensure you have the right tools for the job.

Balancing economic harvesting with sustainable forest management is key to preservation. With rugged, purpose-built forestry equipment from TimberPro and Komatsu, you can manage just that. Our team is ready to assist you no matter how remote your site is.

Dense urban areas can limit your ability to work efficiently, but our compact solutions from trusted brands like Takeuchi can help you navigate tightly confined spaces with the horsepower you require.

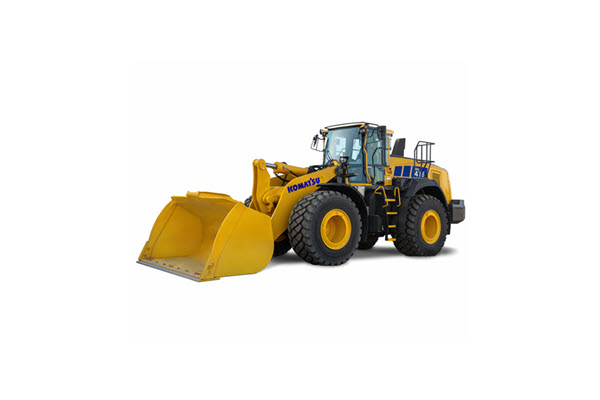

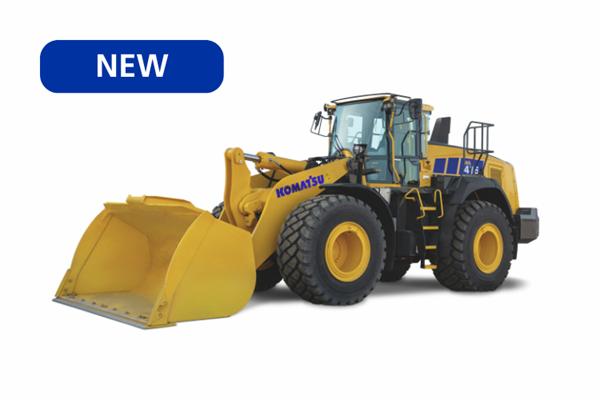

Komatsu WA475-11

View Gallery

Komatsu WA475-11

Emission Rating

Tier 4 Final

Net Horsepower

343 HP @1,600 rpm256 kW @1,600 rpm

Max Operating Weight

60197 lb27305 kg

Max Bucket Capacity

6.3 yd³4.8 m³

View All Specs Download Brochure

Features

The next-generation Komatsu DBA127 engine is compliant with U.S. EPA Tier 4 Final emissions. Redesigned with many advancements, including proprietary technology to eliminate exhaust gas recirculation (EGR). This engine is designed for lower fuel consumption and more power and torque at lower engine speeds.

Pressurized, large cab designed to provide a quiet environment with a new intuitive console design. Visibility is increased by 21% with more glass area than the previous model. Five-way adjustable console and integrated switch, window roll curtain, electric heated side mirrors and more make this an efficient work environment.

Designed for high efficiency with a continuously variable transmission. The combination of HST and mechanical transmission in a dual power path delivers excellent controllability and high transmission efficiency while promoting low fuel consumption. Dynamic transmission braking eliminates a separate brake cooling system.

Best for quarry and aggregate applications, the YL configuration is designed as a 3-pass match option for loading aggregate and other materials into on-highway trucks. This configuration includes heavier counterweight, wide low-profile tires and rims, reinforced frame and optimized bucket size for quarry work.

Compared to the previous model, you may realize up to a 21% average reduction in maintenance costs. This is chiefly due to extended intervals for hydraulic and oil filter changes, as well as lengthening the time needed between KDPF cleanings.

With AFJS, the vehicle body articulates based on the tilt angle of the joystick. This technology converts joystick operation into electrical signals, delivering a smooth feel with less operating force for reduced wrist strain. Operators can adjust this low-effort drive-by-wire system. A steering wheel option is still available.

The work equipment speed can be controlled with levers. The engine speed is automatically optimized based on lever operation without pressing an accelerator pedal. Separating the transmission control from work equipment simplifies operations with less brake wear during hopper or truck loading.

Dual rear-side radars help detect objects and working machines as they approach the direction of travel while reversing the machine. A warning buzzer and indicator light alert the operator of a potential collision. This system also features false detection technology to help maintain uptime while promoting zero harm.

The bucket's cross-sectional shape is intended for digging efficiency with material scooped and rolled up along the inclined floor of the bucket. Combining this redesigned bucket and the auto digging system helps boost productivity and is especially beneficial for newer operators on your crew.

Gallery
