Features

  • Gull-wing engine hood folds down providing an elevated service platform.
  • Hydraulically-actuated with backup manual hand pump.
  • Robust design provides a secure footing with 500 lbs (227 kg) load capacity.
  • Offers excellent visibility and access to all engine-related components.
  • Provides full access to engine oil filter, air filter, fuel filters, coolant, DEF fluid and hydraulic filters.

  • State-of-the-art cab relocated to the left side.
  • Tracks are now highly visible through the side door and boom side windows
  • Larger Door window has an “L-shaped” flat bottom
  • Engine/pump compartment is set-back; top 2/3 portion is indented rearward

Rugged new Komatsu undercarriage provides longer service life due to:
  • Heavier 8.5“ track chain links have a thicker bushing strap which is stronger at resisting "twist”
  • Track rollers & idler bushings are made of high-density material
  • New track sliders have a reduced angle providing 30% lower contact
  • Final drives use a new triple labyrinth seal to protect from mud-packing
  • Crawler Box improvements include:
  • Removeable track guards have larger roller side openings to reduce mud packing
  • Additional set of steps has been added to each crawler box

  • Increased lift capacity at full reach vs. XT-3 due to improved boom & arm geometry and larger cylinders.
  • Provides better balance between boom lift & arm holding capacity.

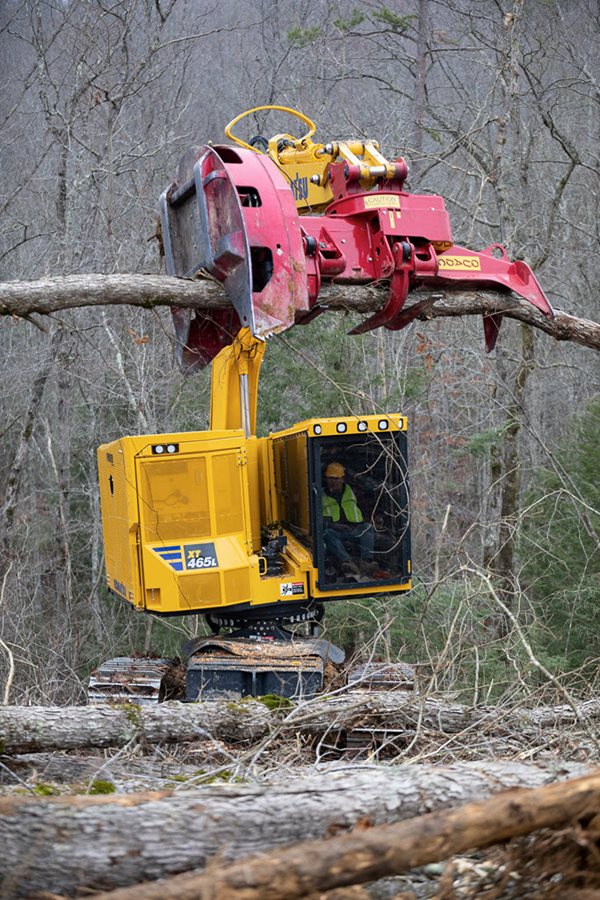

  • Broad line of Quadco high speed disc saws available.

Due to the advanced Cummins QSL9 engine system control designs that are EPA Tier 4 final emissions certified

​Fuel consumption decreases up to 10%

Quick response times with 17% larger capacity piston pumps and electronically-controlled hydraulic flow

 The XT465L-5 hydraulic system with robust forestry-specific guarding system on boom/arm/rear hydraulic tubes and hoses.

Innovative hydraulic tank system requires 55% less hydraulic oil
