Name: Komatsu PC390LCi-11 Excavator
Brand: Komatsu
SKU: PC390LCi-11

Whether you're digging foundations or building communities, our reliable equipment delivers precision for construction work. Select from top brands like Komatsu, BOMAG, and Takeuchi, plus custom attachments to ensure you have the right tools for the job.

Balancing economic harvesting with sustainable forest management is key to preservation. With rugged, purpose-built forestry equipment from TimberPro and Komatsu, you can manage just that. Our team is ready to assist you no matter how remote your site is.

Dense urban areas can limit your ability to work efficiently, but our compact solutions from trusted brands like Takeuchi can help you navigate tightly confined spaces with the horsepower you require.

Komatsu PC390LCi-11

View Gallery

Komatsu PC390LCi-11

Emission Rating

Tier 4 Final

Net Horsepower

257 HP @1,950 rpm192 kW @1,950 rpm

Max Operating Weight

90441 lb41023 kg

Max Bucket Capacity

2.91 yd³2.22 m³

Max Digging Depth

26′7″8100 mm

View All Specs Download Brochure

Features

A fully integrated grade assist automatically traces the target surface to minimize over digging. A built-in facing angle compass ensures the machine is aligned with the target surface.

iMC controls the bucket by automatically selecting the point closest to the target surface, which minimizes operator input while providing higher accuracy and grading confidence.

For utility customers looking for the utmost precision, the excavator allows your operator to input structure, invert elevations of pipe runs and automatically calculates fall of pipe.

Your fleet can be environmentally friendly without sacrificing power. Excavators with iMC have a Tier 4 certified engine, which features an integrated diesel particulate filter, hydraulically actuated Komatsu variable geometry turbocharger and selective catalytic reduction system.

Stroke sensing hydraulic cylinders provide real-time position that is immediately displayed to the operator. This is an improvement over conventional aftermarket machine guidance (indicate only) systems with tilt sensors that require time to stabilize.

A large counterweight and robust undercarriage components help provide outstanding stability

To help eliminate damage during boom or bucket operation, the machine automatically stops when the bucket edge reaches the design surface.

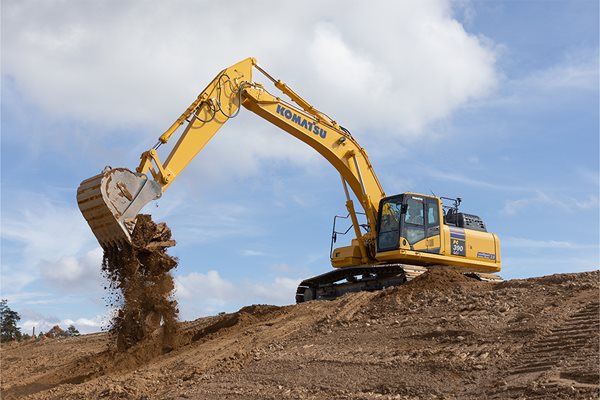

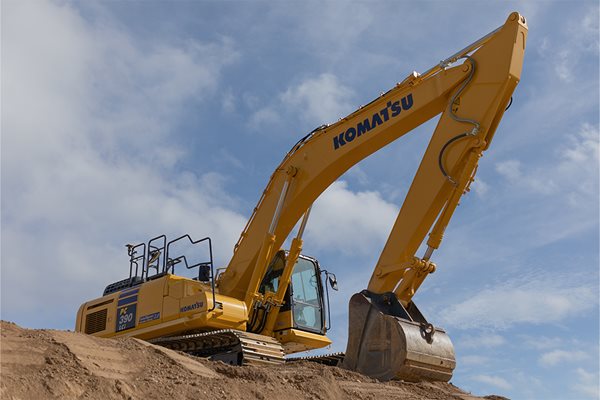

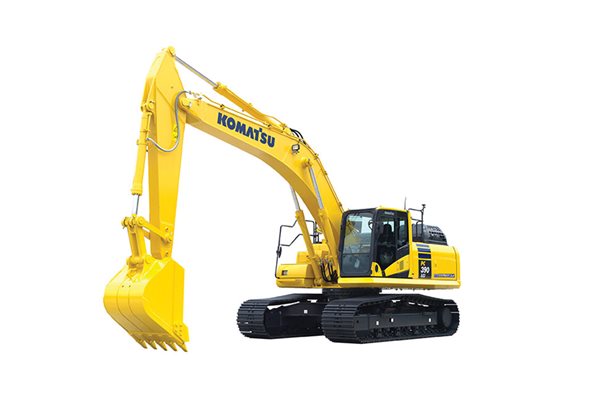

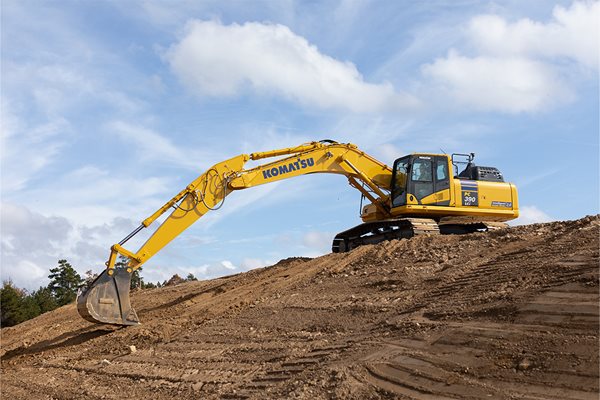

Gallery
