NPK
M38K Shear

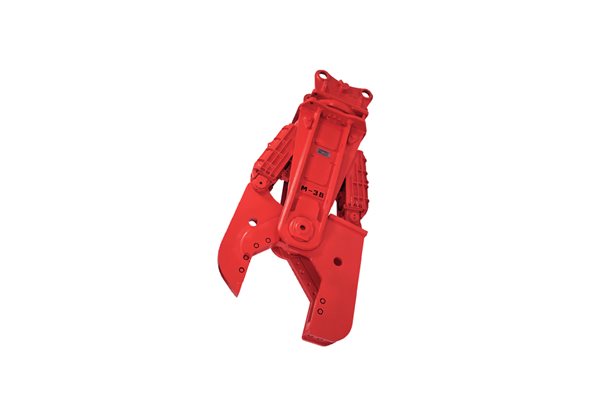

NPK’s M38K Material Processor features a K Jaw Set with bolt-on piercing tips for shearing. Compatible with excavators in the 33 to 55 ton range. Cylinder design improves crushing/piercing power to handle the toughest jobs. Exclusive integral hydraulic intensifier system boosts power by amplifying cylinder pressure, reducing cycle time, improving productivity and providing greater power-to-weight ratio.
Working Weight
9370 lb (4250 kg)
Recommended Carrier Weight
33 - 55 U.S. tons
(30 - 50 metric tons)
Jaw Set Type
Shear Jaw
Max Jaw Opening
28.9 ″ (735 mm)
Maximum Crushing Force
170 U.S. tons (0 metric tons)
