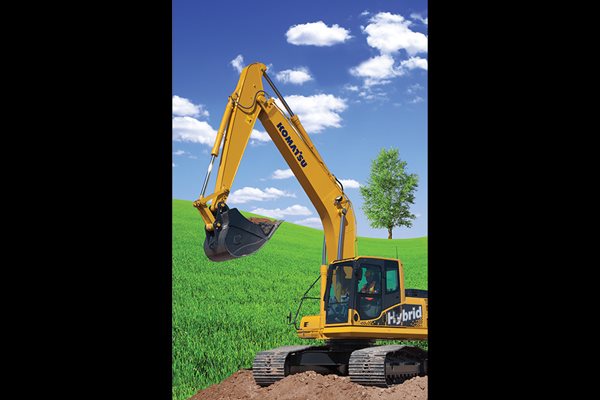

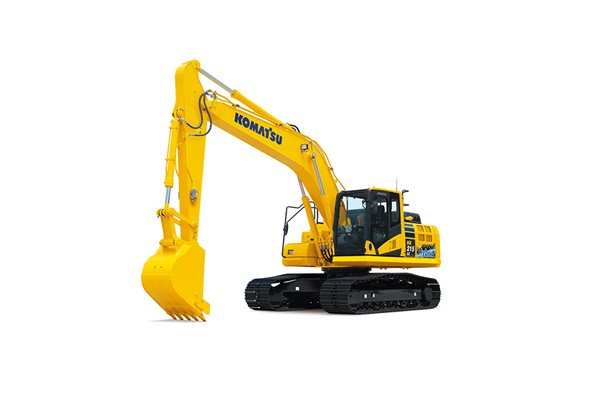

Name: HB215LC-3 (Hybrid) Excavator
SKU: HB215LC-3 (Hybrid)

HB215LC-3 (Hybrid)

The HB215LC-3 improves efficiency and boosts performance. The combination of its 145 hp 4.4 L 4 cylinder engine and Hybrid Motor-Generator, the HB215LC-3’s powertrain provides up to a combined 185hp for hydraulic functions. The machine meets emissions without the need for a DPF, reducing maintenance costs of DPF cleanings/replacements. The hybrid system proves additional power to assist in fast demanding hydraulic functions, and contributing to a 20% fuel savings over a PC210LC-11.

Emission Rating

Tier 4 Final

Net Horsepower

148 HP @2,000 rpm (110 kW @2,000 rpm)

Max Operating Weight

51745 lb (23471 kg)

Max Bucket Capacity

1.57 yd³ (1.2 m³)

Max Digging Depth

21′9″ (6620 mm)

Download HB215LC-3 (Hybrid) Brochure

Features

Working together, the leading technology Komatsu Hybrid System, Tier 4 Final engine design, and an integrated complete vehicle control system notably reduce fuel consumption.

Fuel consumption
Reduced by up to:

25% / 20% / 7%

(vs PC210LC-10 / vs PC210LC-11 / vs HB215LC-2)

Based on typical work pattern collected via KOMTRAX.

The HB215LC-3's enhanced P mode provides improved performance and productivity.

Improved productivity

Up to 8% increase

(Compared to HB215LC-1 in P mode)

90 degree swing truck loading

Hybrid system temperature gauge

The hybrid system temperature gauge is displayed on the screen. This allows the operator to understand the severity of the load on the hybrid system at a glance.

In Komatsu’s unique hybrid system, the electric swing motor-generator captures and regenerates energy as the upper structure slows down and converts it into electric energy. The regenerated energy is stored in the capacitor and used by the motor-generator to assist the engine when it needs to accelerate. The hybrid system reduces fuel consumption significantly. Most components of the system are developed and manufactured by Komatsu.

A motor-generator is positioned between the engine and hydraulic pumps to assist in rapid engine response from ultra low idle when required. The generator produces electric power and charges the capacitor when required.

An electric swing motor-generator recovers energy during swing braking. The motor-generator also accelerates the swing of the upper structure more efficiently than a conventional hydraulic motor and provides excellent swing performance. Dedicated lubrication and cooling systems are used for reliability and durability.

This new system combines a Komatsu Diesel Oxidation Catalyst (KDOC) and SCR. The SCR NOx reduction system injects the correct amount of Diesel Exhaust Fluid (DEF) at the proper rate, thereby decomposing NOx into non-toxic water (H2O) and nitrogen gas (N2).

Wide, spacious cab includes seat with reclining backrest. The seat height and recline position are easily adjusted using a pull-up lever. You can set the appropriate operational posture of armrest together with the console. Reclining the seat further enables you to place it into the fully flat state with the headrest attached.

Specs & Compare

Printer Friendly Version

Select up to 4 models to compare specifications

Features

REDUCED FUEL CONSUMPTION

25% / 20% / 7%

ENHANCED PRODUCTIVITY

Up to 8% increase

EASY-TO-UNDERSTAND HYBRID OPERATION MONITOR SCREEN

RELIABLE AND DURABLE HYBRID COMPONENTS DEVELOPED AND MANUFACTURED BY KOMATSU

MOTOR-GENERATOR

ELECTRIC SWING MOTOR-GENERATOR

HEAVY-DUTY AFTERTREATMENT SYSTEM

WIDE SPACIOUS CAB
