Komatsu Intelligent Machine Control 3.0

Whether you're digging foundations or building communities, our reliable equipment delivers precision for construction work. Select from top brands like Komatsu, BOMAG, and Takeuchi, plus custom attachments to ensure you have the right tools for the job.

Balancing economic harvesting with sustainable forest management is key to preservation. With rugged, purpose-built forestry equipment from TimberPro and Komatsu, you can manage just that. Our team is ready to assist you no matter how remote your site is.

Dense urban areas can limit your ability to work efficiently, but our compact solutions from trusted brands like Takeuchi can help you navigate tightly confined spaces with the horsepower you require.

Bring next-level precision and performance to your job site with cutting-edge technology

Intelligent Machine Control (IMC 3.0) delivers advanced, fully integrated technology and comes standard on the new PC220LCi-12 excavator.

Building on the proven IMC 2.0 technology, IMC 3.0 offers several new automated functions that increase overall productivity, reduce rework, and improve operator performance, regardless of experience.

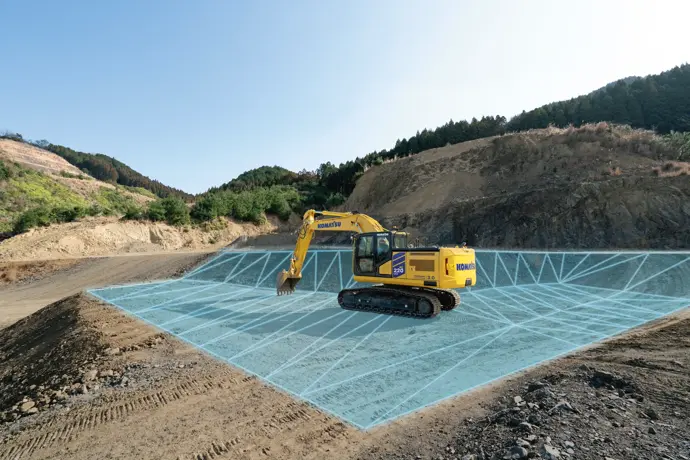

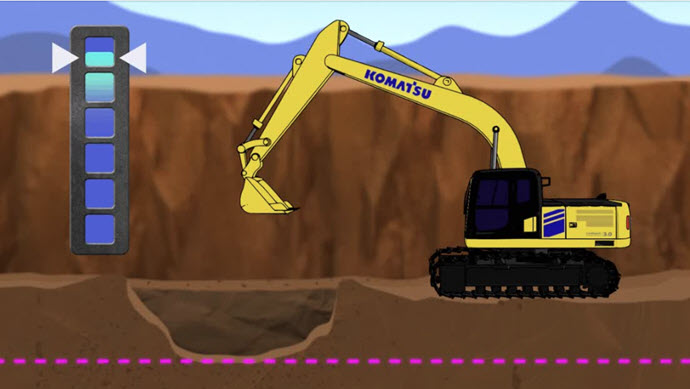

3D Boundary Control

Work-restriction surfaces can be set with specified height, depth, front, back, and side boundaries. The excavator will stop automatically when it gets close to the specified restricted zone.

3D Boundary Control operates on a fixed 3D coordinate system designed in a project file, which means that the boundaries do not need to be reset, even when the machine is moving. This is extremely useful for complex job sites, as it can remember multiple restriction zones specific to each work area.

Key benefits:

Prevents contact with high-voltage cables, adjacent buildings, or piping installed underground.
Reduces unnecessary stoppages to reset boundary limits since the boundary is set to the site conditions, rather than to the machine.
Increases operator productivity, as they don’t need to reset the boundary or second-guess their surroundings.

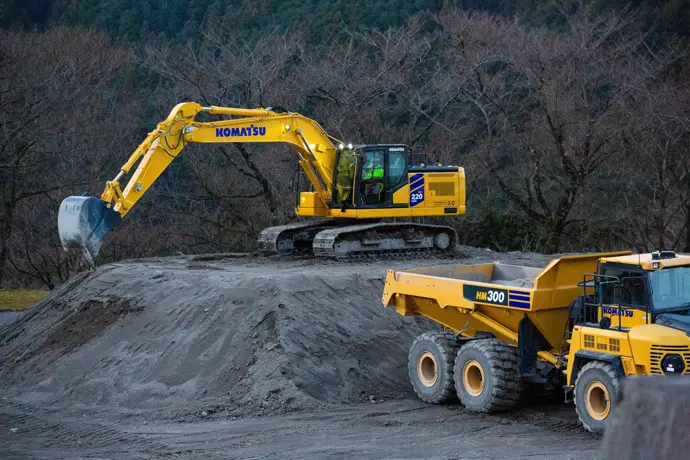

Auto Swing

The auto swing feature automates the loading process. The machine automatically swings and lifts the bucket to the predefined position of the truck body. Once material is dumped, the excavator automatically swings back to the original digging point, ready for the next cycle.

Key benefits:

Reduces operator fatigue and allows them to focus on the next dig pass.
Increases cycle speeds.
Minimizes spillage and maximizes truck fill for consistent truck loading.

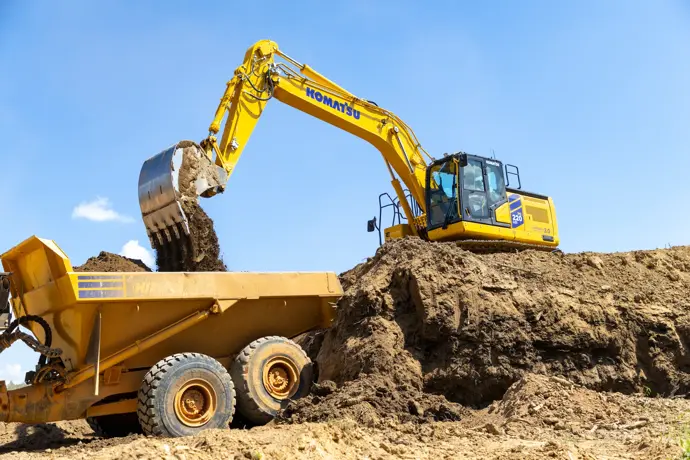

Enhanced Payload Operating System

The bucket and dump payloads are displayed in real time, allowing the operator to perform work while checking payloads on the ICT monitor, enabling the management of payloads.
