Name: Komatsu D61PXi-24 Dozer
Brand: Komatsu
SKU: D61PXi-24

From top brands like Komatsu and Takeuchi, we have new equipment for all your project needs. Discover our range of solutions all backed by our commitment to your success.

Whether you’re looking for concrete pulverizers or harvesting heads, we’re proud to offer a complete range of attachments that meet your needs — as well as your standards.

Your source for aftermarket and OEM parts in Alaska.
We provide support for all areas of your equipment, including powertrain, hydraulic systems, lighting, operator environment, undercarriage, electrical systems, cooling systems and more.

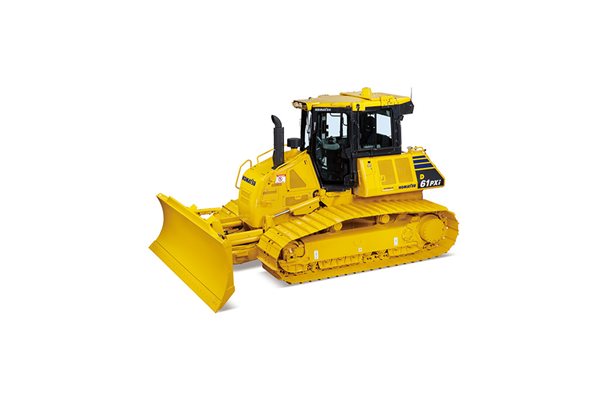

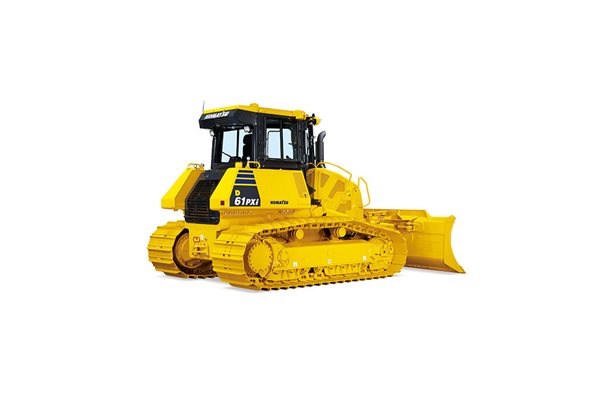

Komatsu D61PXi-24

View Gallery

Komatsu D61PXi-24

Emission Rating

Tier 4 Final

Net Horsepower

168 HP @2,200 rpm125 kW @2,200 rpm

Max Operating Weight

43167 lb19580 kg

Blade Capacity

5 yd³3.8 m³

View All Specs

Features

No blade mounted GNSS antenna(s), cables to worry about damaging with cab top GNSS antenna. Reduced risk of theft due to low visibility as viewed from ground level.

The operator seat has adjustable lumbar support, tilt and an electric heater. It is easy to adjust to the operator’s shape. Also, the standard seat heat makes it possible to work comfortably in the winter.

Planned maintenance and daily checks are the only way to ensure long service life from equipment. That’s why Komatsu designed the D61EXi/PXi-24 with conveniently located maintenance points to make necessary inspections and maintenance quick and easy.

The D61 EXi/PXi-24 utilizes a swing-up fan with a gas strut-assisted lift system to provide easy access to the (side-by-side) radiator, oil cooler and charge air cooler. The hydraulic fan has a cleaning mode which can be used for periodic cooler cleaning.

The electronic controlled, palm commanded joystick provides precise blade control. New blade angling switch operation provides easier and predictable blade control.

The HST control system can reduce fuel consumption.

This new system combines a Komatsu Diesel Particulate Filter (KDPF) and Selective Catalytic Reduction (SCR). The SCR NOx reduction system injects the correct amount of DEF at the proper rate, transforming NOx into non-toxic water (H20) and nitrogen gas (N2).

The system is designed to achieve an optimal injection of high-pressure fuel by means of computerized control, providing close-to-complete combustion to reduce PM emissions. The system uses high pressure injection, thereby reducing both PM emissions and fuel consumption over the entire range of engine operating conditions. The Tier 4 Final engine has advanced fuel injection timing for reduced fuel consumption and lower soot levels.

Komatsu auto idle shutdown automatically shuts the engine down after idling for a set period of time to reduce unnecessary fuel consumption and exhaust emissions. The amount of time before the engine is shutdown can be easily programmed from 5 to 60 minutes.

The KVGT system features proven Komatsu design hydraulic technology for variable control of air-flow and supplies optimal air according to load conditions. It provides better exhaust temperature management. The Tier 4 final version has an improved propeller design for increased performance.

Various meters, gauges and warning functions are centrally arranged on the multi-monitor. The monitor simplifies start-up inspection and promptly warns the operator with a lamp and buzzer if any abnormalities occur. In addition, countermeasures are indicated in 4 levels to help prevent major machines problems. Replacement times for required PM services are also indicated.

Komatsu’s new PLUS provides less downtime, plus longer wear up to 40% lower undercarriage maintenance costs. Rotating bushings eliminate the cost and downtime for bushing turns, and strengthened rollers and links increase wear life up to two times. With PLUS, individual links can be replaced with common track tools.

A power angle power tilt dozer blade with adjustable blade pitch system is available. This blade is available for the D61EXi/PXi-24 machines. The hydraulic blade tilt, angling function (and manually adjustable blade pitch) expand versatility and productivity in a variety of applications.

The low-effort PCCS joystick controls all directional movements, including machine travel speed as well as counter-rotation.

With P mode, the engine outputs its full power, allowing the machine to perform the work requiring large production, heavy-loads and uphill work.

E mode (Economy mode)
With E mode, the engine outputs enough power for the work without delivering unnecessary power. This mode enables energy saving operation and is ideal on hard or rough surfaces that often cause shoe slip and work not requiring as much power, such as downhill dozing, leveling and light-load work.

H mode (High engine idle speed mode)
This setting allows subtle changes in load to be detected, which is tailor-made for power-intensive work. Compared to P mode, the engine high-idle speed is higher in H mode.
